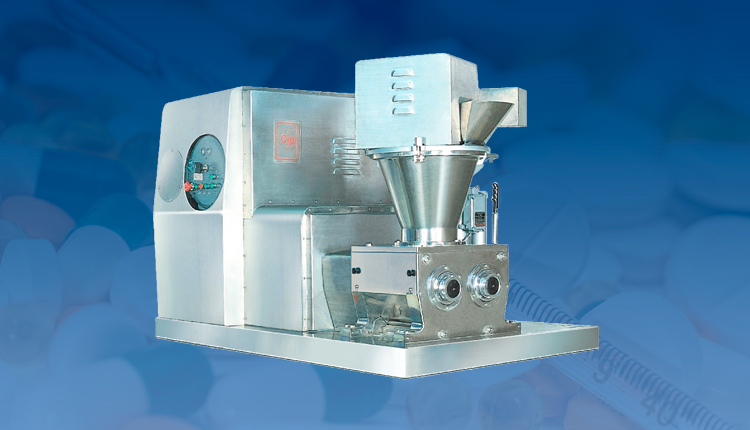

Mega Roll Compactor

Specification

Model	CIRC-200/150	CIRC 200/200	CIRC 300/300
Output	100 to 350 kgs./Hr*	150 to 400 kgs/Hr.*	200 to 600 kgs/Hr.*
Roll Size	Ø 200mm x 150 mm	Ø 200mm x 200 mm	Ø 300mm x 300 mm
Roll Surface	Corrugated / Knurled** / Smooth** / Briquetted**
Roll Speed	5 to 25 RPM		9 to 25 RPM
Feed Screw Speed	10 to 60 RPM		15 to 40 RPM
Roll Drive Motor	10 HP / 960 RPM / 3Ph.		30 HP/ 960RPM / 3 Ph.
Feed Screw Drive motor	5 HP / 1440 RPM / 3 Ph.		7.5 HP/ 1440RPM / 3 Ph.
